VF Series

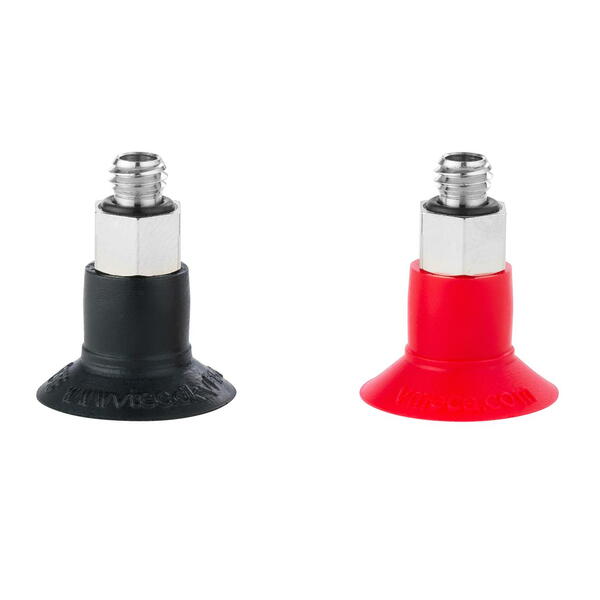

VF15 series
Flat Suction Cups
- Lifting Force (↑): 0.86 Kg @ -60 kPa
- Lifting Force (→): 0.66 Kg @ -60 kPa
- Volume: 0.037 cm³
- Diameter: 16.5 mm
- Catalog list

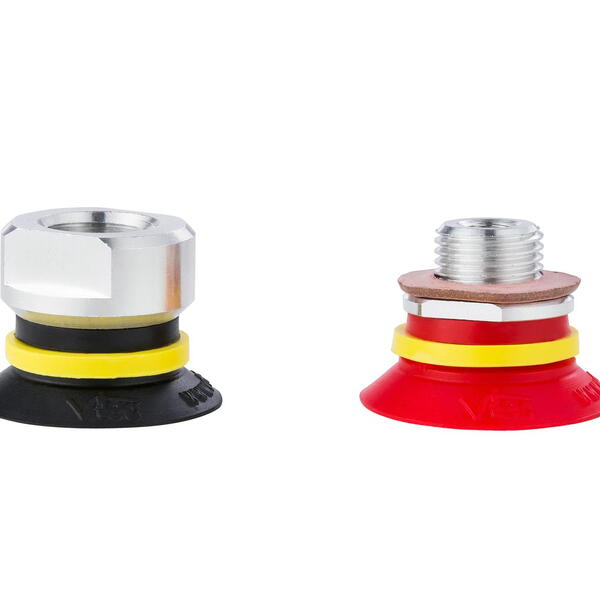

VF20 series
Flat Suction Cups
- Lifting Force (↑): 1.47 Kg @ -60 kPa
- Lifting Force (→): 0.81 Kg @ -60 kPa
- Volume: 1.0 cm³
- Diameter: 22 mm
- Catalog list

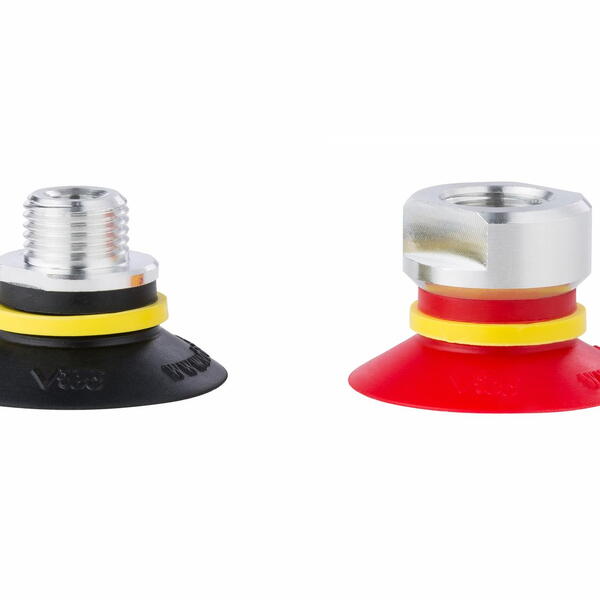

VF25 series
Flat Suction Cups
- Lifting Force (↑): 1.98 Kg @ -60 kPa
- Lifting Force (→): 0.91 Kg @ -60 kPa
- Volume: 1.10 cm³
- Diameter: 27 mm
- Catalog list

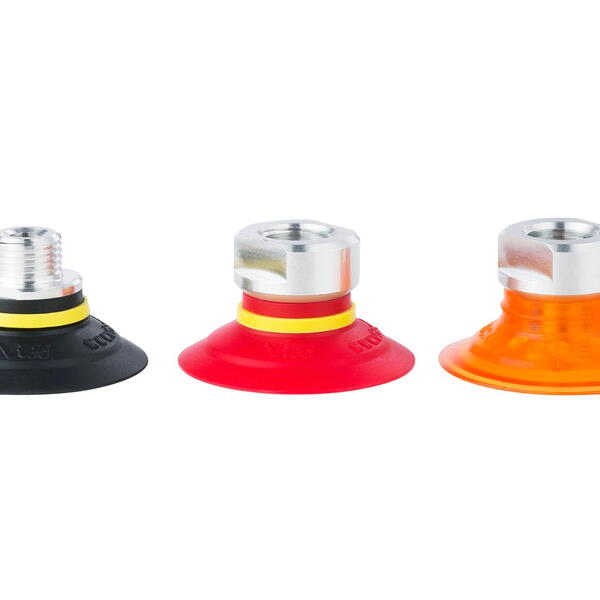

VF30 series
Flat Suction Cups
- Lifting Force (↑): 2.55 Kg @ -60 kPa
- Lifting Force (→): 1.63 Kg @ -60 kPa
- Volume: 2.0 cm³
- Diameter: 32 mm
- Catalog list

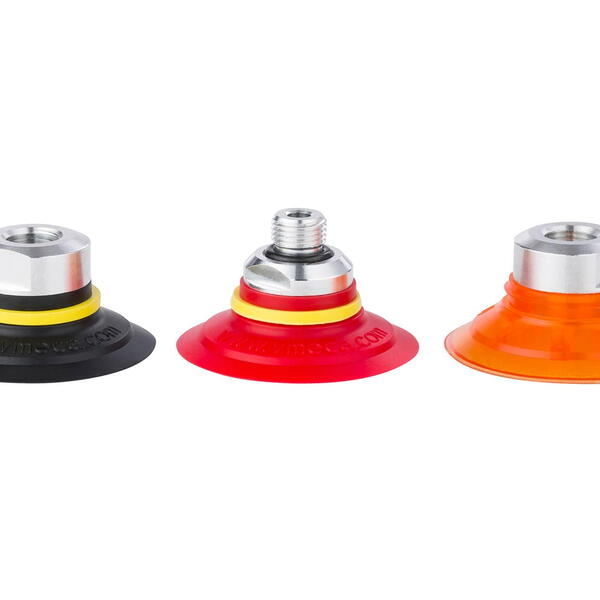

VF40 series
Flat Suction Cups
- Lifting Force (↑): 4.08 Kg @ -60 kPa
- Lifting Force (→): 2.55 Kg @ -60 kPa
- Volume: 4.8 cm³
- Diameter: 42 mm
- Catalog list

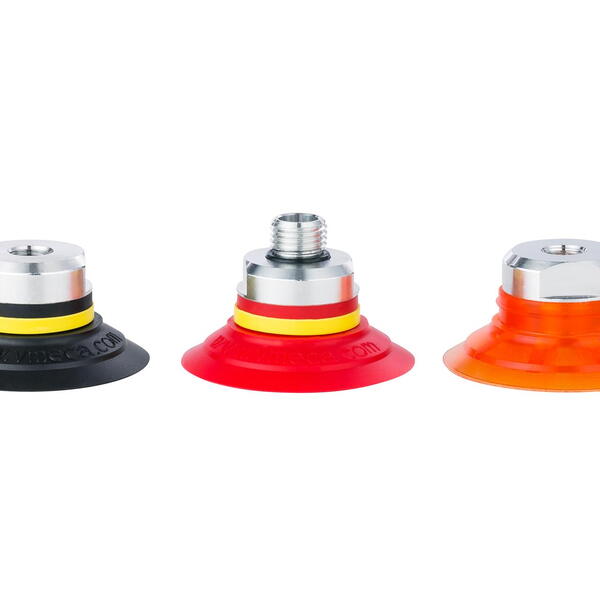

VF50 series
Flat Suction Cups
- Lifting Force (↑): 7.55 Kg @ -60 kPa
- Lifting Force (→): 4.08 Kg @ -60 kPa
- Volume: 10.0 cm³
- Diameter: 53 mm
- Catalog list

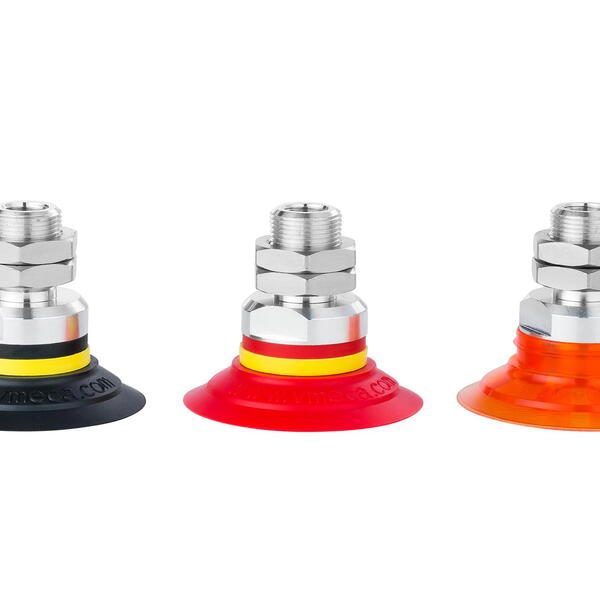

VF50X2 series
Flat Suction Cups
- Lifting Force (↑): 7.55 Kg @ -60 kPa
- Lifting Force (→): 4.08 Kg @ -60 kPa
- Volume: 10.0 cm³
- Diameter: 53 mm
- Catalog list

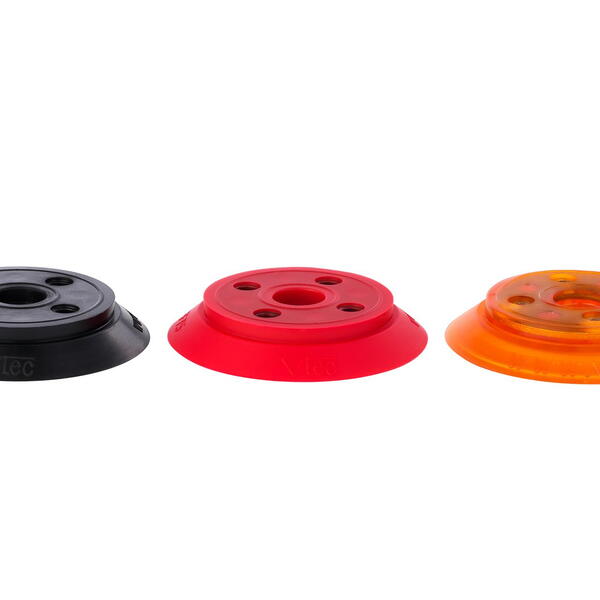

VF75 series
Flat Suction Cups
- Lifting Force (↑): 20.40 Kg @ -60 kPa
- Lifting Force (→): 11.22 Kg @ -60 kPa
- Volume: 20.0 cm³
- Diameter: 77 mm
- Catalog list

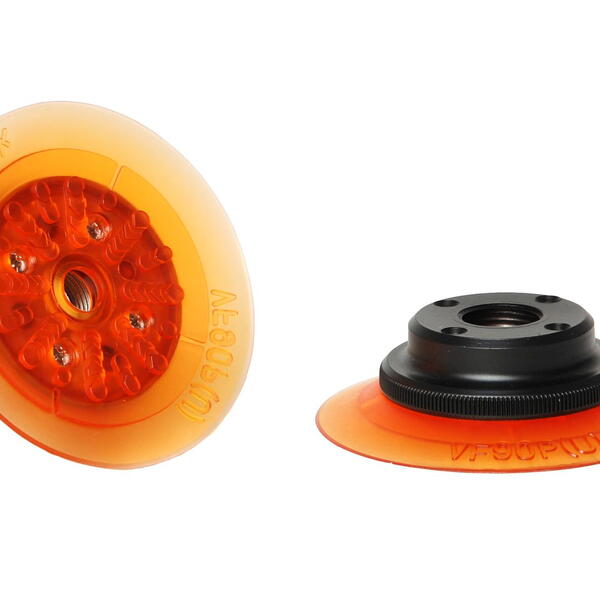

VF90 series
Flat Suction Cups
- Lifting Force (↑): 27.83 Kg @ -60 kPa
- Lifting Force (→): 15.98 Kg @ -60 kPa
- Volume: 50.0 cm³
- Diameter: 92 mm
- Catalog list

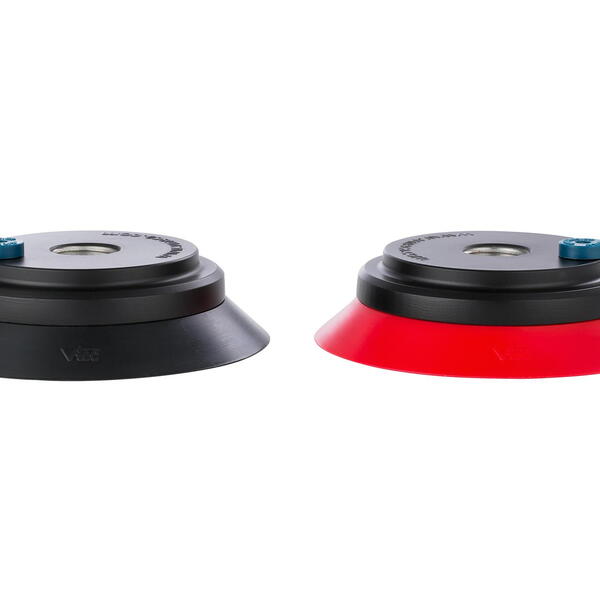

VF110 series
Flat Suction Cups
- Lifting Force (↑): 42.58 Kg @ -60 kPa
- Lifting Force (→): 25.51 Kg @ -60 kPa
- Volume: 70.0 cm³
- Diameter: 112 mm
- Catalog list

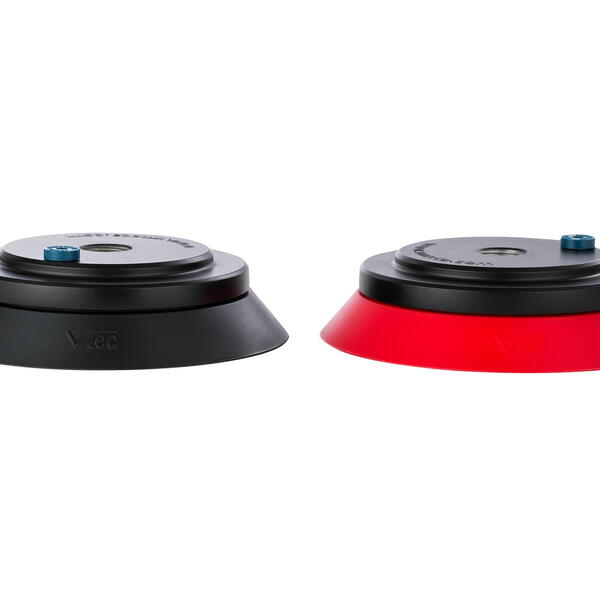

VF150 series
Flat Suction Cups
- Lifting Force (↑): 86.73 Kg @ -60 kPa
- Lifting Force (→): 61.22 Kg @ -60 kPa
- Volume: 160.0 cm³
- Diameter: 152 mm
- Catalog list

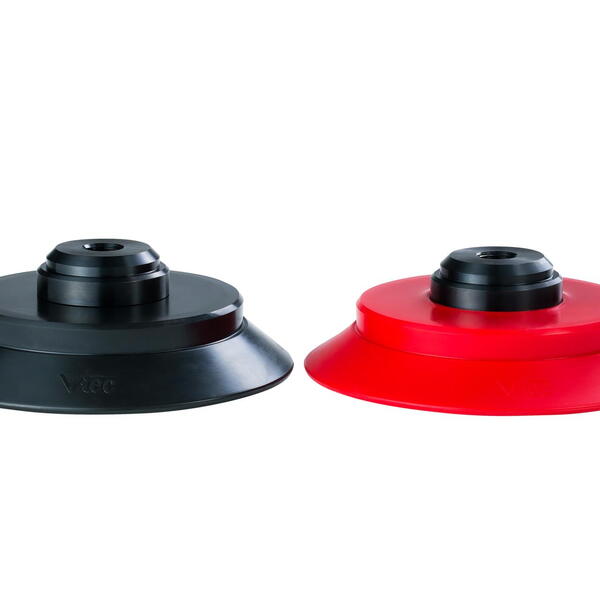

VF200 series
Flat Suction Cups
- Lifting Force (↑): 193.87 Kg @ -60 kPa
- Lifting Force (→): 96.90 Kg @ -60 kPa
- Volume: 460.0 cm³
- Diameter: 200 mm
- Catalog list

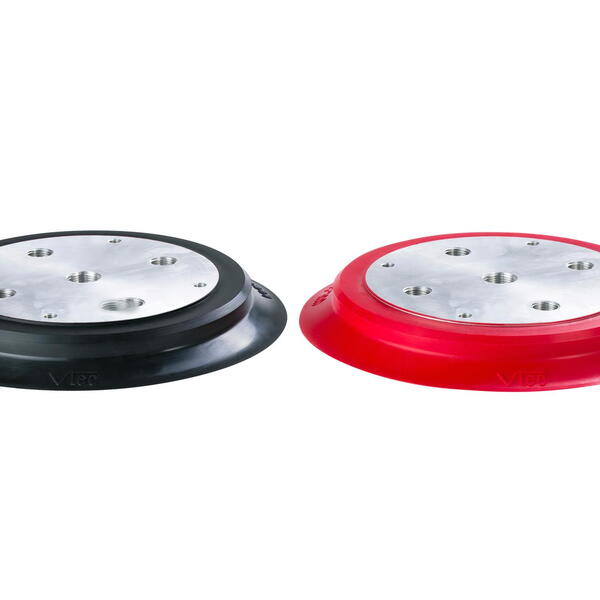

VF300 series
Flat Suction Cups
- Lifting Force (↑): 438 Kg @ -60 kPa
- Lifting Force (→): 307 Kg @ -60 kPa
- Volume: 820.0 cm³
- Diameter: 304 mm
- Catalog list
